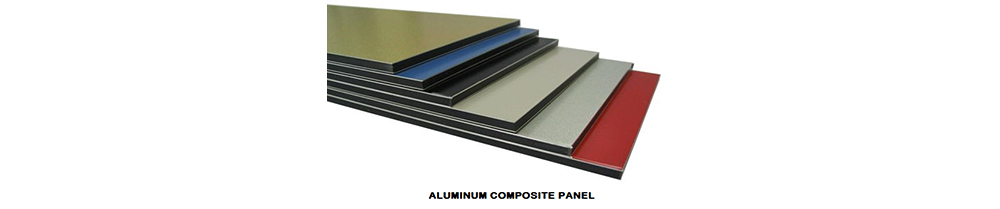

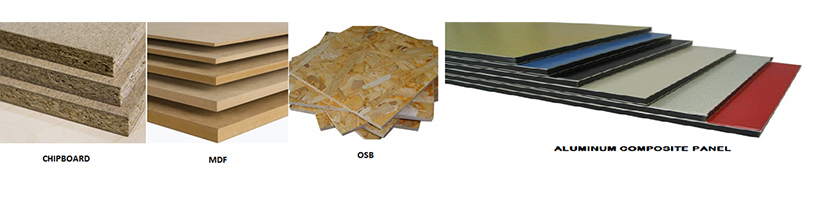

"Vertical Panel Saw Machinery usually Manufacturers of furniture, wood panel producers, build companies in the exterior coating and advertising sector; It is used for sizing of Chipboard, OSB Panel, MDF Panel, Plywood Panel, Laminated Panel Saws. And Used for operations and for Aluminum Composite Panel Saws and Grooving Used for operations "
| PLACE OF USE |  |
|
| TYPE | 15-40 COM | 20-40 COM |
| Main Motor Rating | 3 kw-4 hp | 3 kw-4 hp |
| Mains Connection | 380V/50hz | 380V/50hz |
| Engine Speed | 3000 rpm | 3000 rpm |
| Main Blade Speed | 5800 rpm | 5800 rpm |
| Grooving Blade Speed | 5800 rpm | 5800 rpm |
| Vertical Cutting Size | 1500 mm | 2000 mm |
| Horizontal Cutting Size | 4000 mm | 4000 mm |
| Cutting Thickness | 0-20 mm between | 0-20 mm between |
| Cutting Blade Measurements | Ø230x30x3,2 mm-Z62 | Ø230x30x3,2 mm-Z62 |
| Grooving Blade Measurements | Ø200x30x2,0 mm-Z10 Diamond Tip | Ø200x30x2,0 mm-Z10 Diamond Tip |
| Machine Dimensions | L: 5000 mm x H: 2450 mm x W: 1600 mm | L:5100 mm x H:3000 mm x W:1600 mm |
| Dimensions Shipping | 1.pack : L: 5000 mm x H: 2150 mm x W: 1100 mm 2.pack : L: 2450 mm x H: 1000 mm x W: 1100 mm |
1.pack : L:5100 mm x H:2650 mm x W:1100 mm 2.pack : L:3000 mm x H:1000 mm x W:1100 mm |
| Machine Weight | 500 kg | 550 kg |
| Bottom Support | metal wheels | metal wheels |
| Movable Front Support | button two position permanent | button two position permanent |
| Accessories | *digital metre readout | *digital metre readout |
| Hardware | grooving system | grooving system |
| PLACE OF USE |  |
|
| TYPE | 15-40 VPS SINGLE BLADE | 21-41 VPS SINGLE BLADE |
| Main Motor Rating | 4 kw-5,5hp | 4 kw-5,5hp |
| Mains Connection | 380V/50hz | 380V/50hz |
| Engine Speed | 3000 rpm | 3000 rpm |
| Main Blade Speed | 5800 rpm | 5800 rpm |
| Vertical Cutting Size | 2100 mm | 2100 mm |
| Horizontal Cutting Size | 4100 mm | 4100 mm |
| Cutting Thickness | 0-55 mm between | 0-55 mm between |
| Cutting Blade Measurements | Ø250X30X3,2 mm-Z80 | Ø250X30X3,2 mm-Z80 |
| Machine Dimensions | L:5000 mm x H:2450 mm x W:1600 mm | L:5100 mm x H:3000 mm x W:1600 mm |
| Dimensions Shipping | 1.pack : L:5000 mm x H:2150 mm x W:1100 mm 2.pack : L:2450 mm x H:1000 mm x W:1100 mm |
1.pack : L:5100 mm x H:2650 mm x W:1100 mm 2.pack : L:3000 mm x H:1000 mm x W:1100 mm |
| Machine Weight | 500 kg | 550 kg |
| Bottom Support | metal wheels | metal wheels |
| Movable Front Support | button two position permanent | button two position permanent |
| Accessories | *digital metre readout | *digital metre readout |
| Hardware | - | - |
